SYP6060S4 60mm square puffed rice cake machine test for making cakes.
The SYP6060S4 puffed rice cake machine is a newly developed model by Shinyoung Mechanics and can produce 60x60mm square puffed cakes 1,440 pieces per hour.

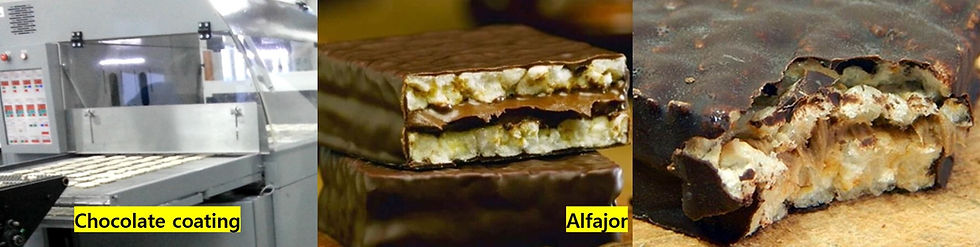

It is mainly used to make products with a chocolate coating on the surface or to make Alfajor, a popular snack coated with chocolate in South America.
Related models: 35x35mm / 40x40mm / 45x45mm / 50x50mm / 80x80mm / 85x85mm
Test video of SYP6060S4 - 60x60mm puffed rice cake
Specification of SYP6060S4 rice cake machine
1. Electric
Voltage : 220V 1phase
Cycles : 50-60Hz
Consumption : 4.0Kw Max
2. Heater Temperature : Max : Max : 400℃, Min : -1℃
3. Working Capacity : 4 pcs every 10 sec
4. Size of rice cake : 60x60mm square, Thickness 2-10mm Approx.
5. Capacity : 1,440-1,800pcs / hour (1,440 pcs based on 10sec cycle)
6. Size & Weight : 600mm*550mm*1,550mm (Weight : 200kg Approx.)
7. Capacity of hopper : 8L(7kg of rice), 1 and half hour production
8. Remark
1) Operated by Hydraulic Cylinder
2) Controlled by Micro-controller
3) Material of grain touching parts are stainless steel (SUS304)
4) Mould is special alloy steel & Titanium coated
5) Outside control + Warning light
